We got a custom cargo bike based on the well-known Bullitt from Larry vs. Harry last year. To have the maximum flexibility, besides the custom design in our corporate colors, we added some nice options, I would like to blog about.



The Cargo Platform

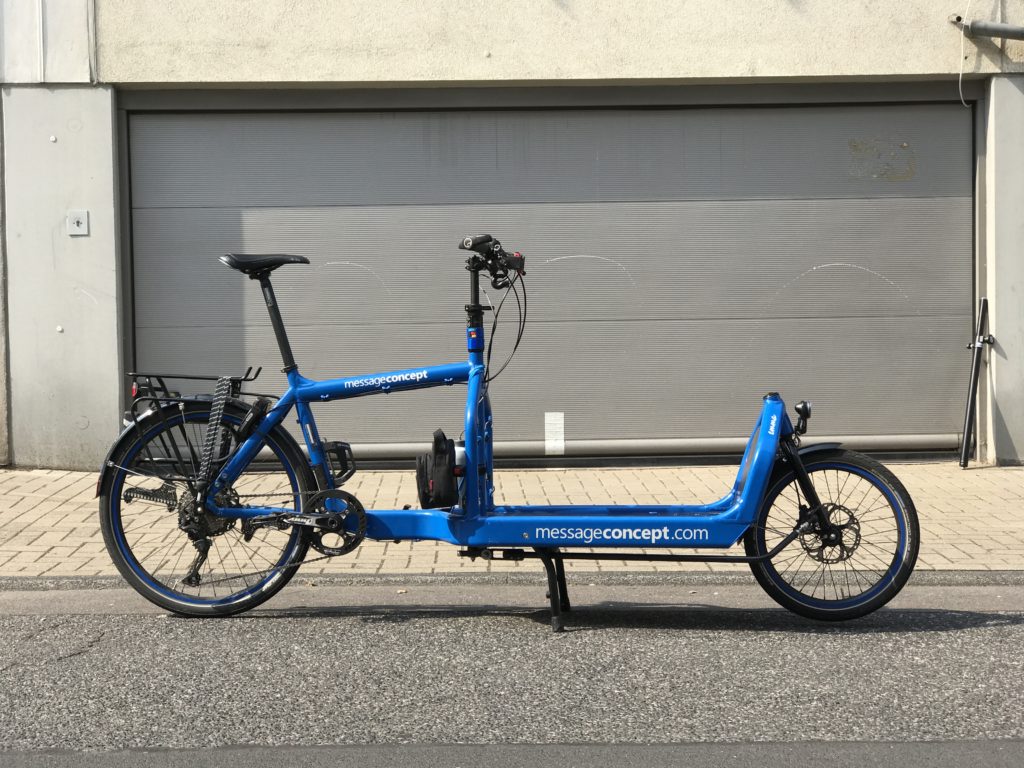

By default the Bullitt comes with a plain platform, we decided to get one made out of plywood.



The Box Configuration

By adding a Box from Punta Velo, we have a lockable trunk on the platform. This is very good for shopping or to store some stuff on the road.



The Bike Transporter

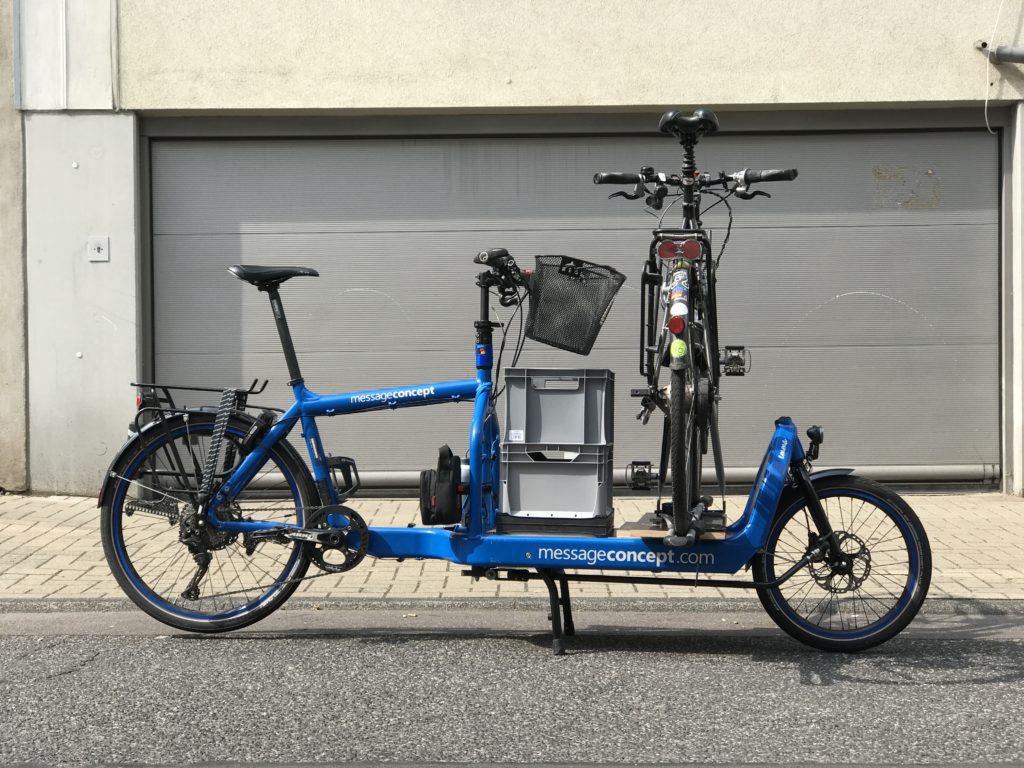

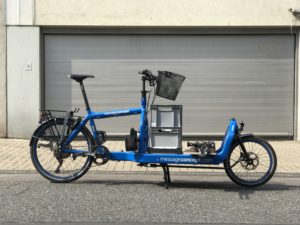

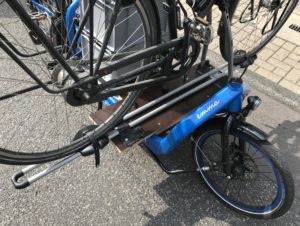

We mounted a Thule bike rack on a plywood plate to be able to transport another bike with the cargo bike. Additionally, we mounted a frame to securely place one or two small 40x30cm EuroNorm boxes on the platform. And if you are thirsty: Beer crates are the same box size… ;-)

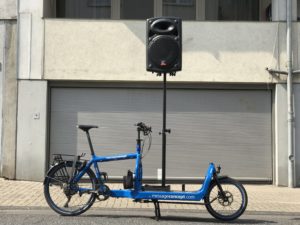

The Sound Bike

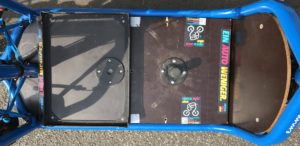

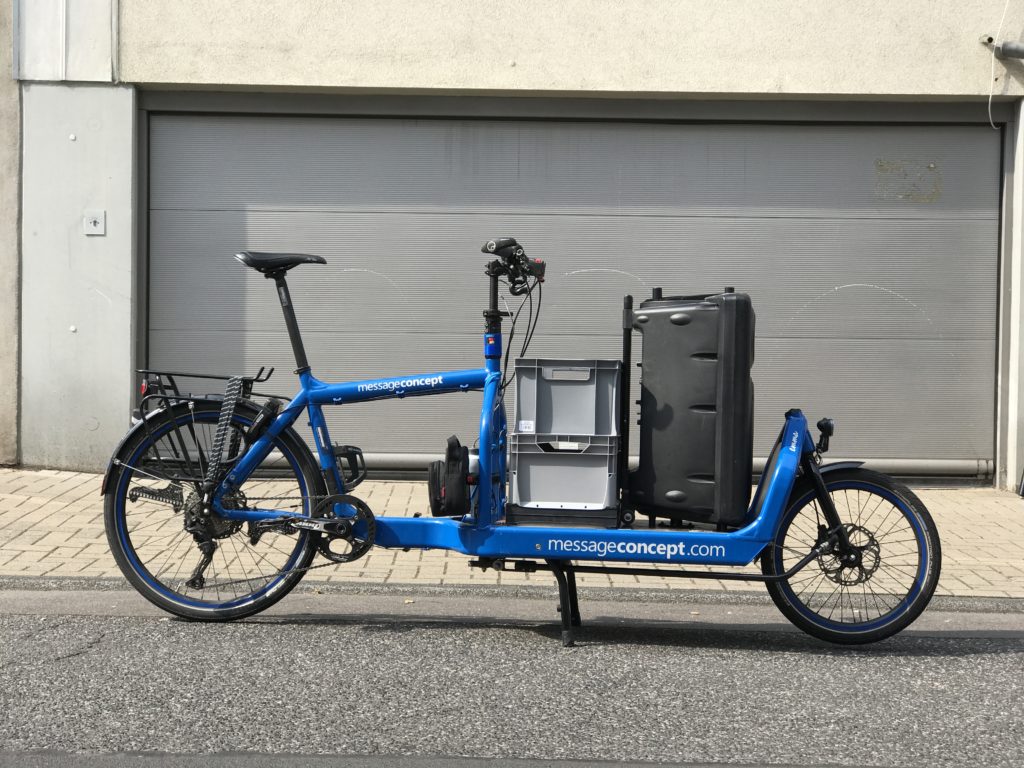

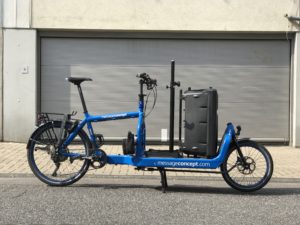

By adding a battery-powered speaker, we get the perfect sound bike for Critical Mass Cologne and are still able to transport some stuff. The speaker is mounted on a short post and needs no additional fixing. In an additional M20 metric screw thread, we are able to store a long post to use the sound bike for events. The speaker is an “E-Lektron EL38-M” mobile sound system. It is mounted on some König & Meyer accessories. To mount all that stuff and still have a clean cargo platform, we put everything on an additional plywood board, that can be removed easily.





The Mobile Workplace

The post of the sound bike can also be used for mounting a notebook holder to create a mobile workplace. This can be used on the sound bike by a DJ, but also, if the bike is used on exhibitions or events. And for sure, this might be the preferred configuration for the next Park(ing) Day in Cologne. The post and the holder are stable enough to mount the notebook while cycling. The notebook is fixed with velcro tape on the holder.



Details

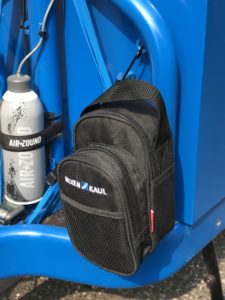

Some details, such as the Klickfix Mini-Adapters for removable bottle cages or bags and the rear lights at the end of the cargo platform are not part of a standard configuration. The lights are Busch & Müller TopLight Line Small, mounted to the lower bottle cage screw thread. These two rear lights and the Busch & Müller Fly Premium front light are powered by a SON hub dynamo. The bottle cage comes from SKS and the bag from KlickFix manufacturer Rixden & Kaul. The AirZound horn in the mid provides some noise, if a car driver does not see you.

The bike comes with a full Shimao Deore XT 1×11 setup plus some Hope components. The frame kit and the box in corporate colors are from Punta Velo in Essen, the custom built was done by the best bike shop on this planet, MTB Store in Eschweiler. The rack is a Tubus LOCC with a KlickFix mount for an ABUS lock.
